19. 2. 2025

A Unique Solution for Vertical Pipes: MSP-VT 250 N - CRAB Magnetic Filter for DN 250, up to 120 °C and 25 bar (case study)

Initial state:

A company in the chemical industry was looking for an effective solution to remove ferromagnetic impurities from a liquid in the DN 250 vertical pipe. Commonly available separators proved to be unsatisfactory because their heavy weight made them difficult to handle during cleaning.

Problem description:

The operation required a reliable magnetic filter capable of capturing even the smallest metal particles at high temperatures and pressures. Actual solutions have failed several times due to:

  • Difficult cleaning of the heavy magnetic component
  • Insufficient separation efficiency
  • Final product contamination danger

Problem-solving:

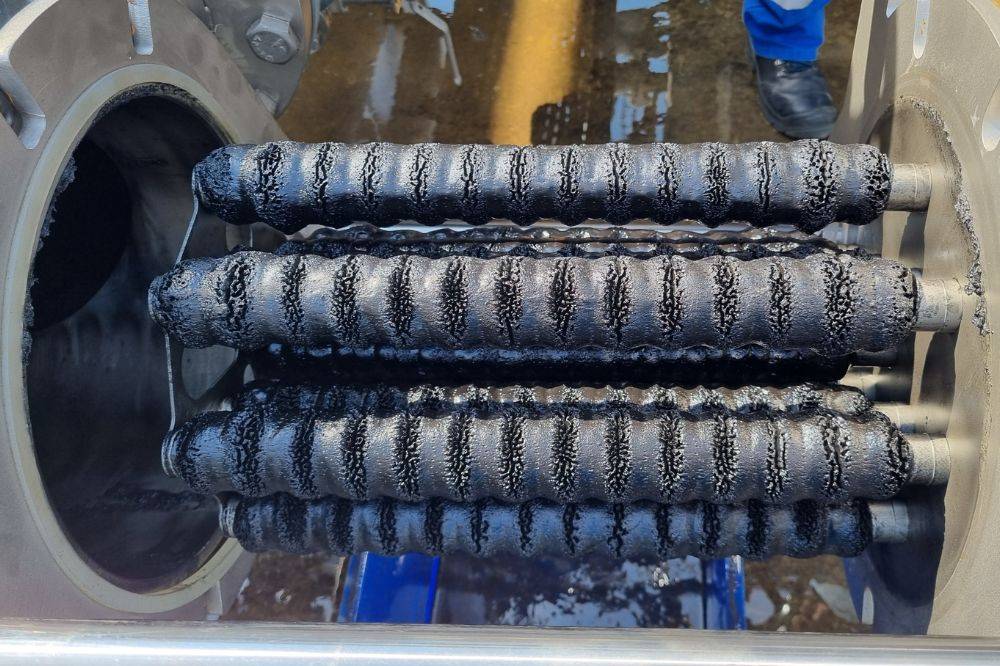

We have designed and supplied the MSP-VT 250 N - CRAB magnetic filter, ideal for installation in vertical pipes DN 250. This innovative solution includes guide rods firmly connecting the magnetic component to the separator body. It makes cleaning easier and reduces the injury risk.

Benefits of Using the MSP-VT 250 N-CRAB Filter

  • Efficient removal of ferromagnetic impurities
  • Simplified cleaning of the magnetic component
  • Possibility of operation at temperatures up to 120 °C and pressures up to 25 bar
  • Installation in vertical DN 250 pipe without demanding pipe modifications
  • Guide rods for easy handling and preventing from magnets’ falling

This solution ensured trouble-free operation, improved the quality of the produced fluid, and minimized operating costs. The customer is fully satisfied with the results and confirms the high separation efficiency.

Advantages of the MSP-VT 250 N - CRAB Magnetic Filter

  • A simple and safe system of cleaning
  • Integrated lock of magnetic tubes
  • Resistant all-stainless steel one- and double-sheathed design
  • Pressure resistance up to 6 bar
  • 16,000 Gauss on the core and up to 11,500 Gauss on the shell,



Equipment Used: MSP-VT 250 N-CRAB Magnetic Filter
