13. 3. 2025

Efficient separation of iron particles during the processing of solid alternative fuels (TAP) in a cement plant

A cement plant in Germany was looking for a reliable solution for the separation of ferrous particles from solid alternative fuels (TAP).

Initial status

Solid alternative fuels contain various types of waste, incl. iron tramp that can cause mechanical damage to transport systems and combustion devices. That is why a reliable separation of ferrous metals was to be ensured. Due to the high hourly processing capacity and intense magnetic contamination a magnetic separator with automatic cleaning had to be chosen.

Solution

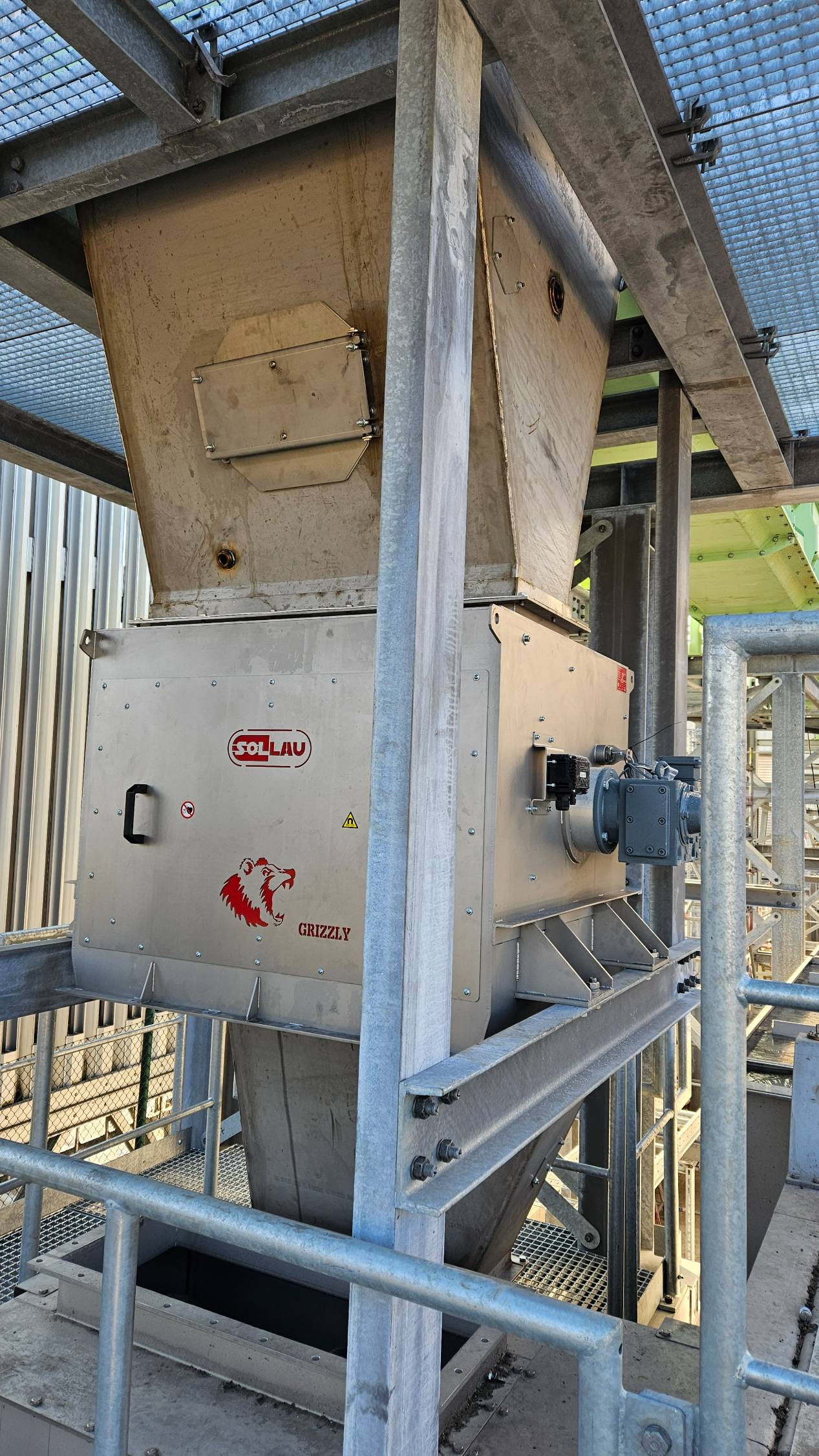

After performing an analysis of the material flow and cement plant requirements, the magnetic drum MBZ 506 F 1000 ATEX was installed. This high-performance equipment enables the continuous separation of ferrous particles without a need of interruption of the the material flow.

We made the equipment to measure. Due to the high processing capacity, we chose a drum diameter of 506 mm and a length of 1,000 mm. The magnetic drum is equipped with ferrite magnets.

Benefits of the magnetic drum MBZ 506 F 1000 ATEX

Thanks to the installation of the magnetic drum MBZ 506 F 1000 ATEX we have managed to:

  • Significantly reduce the amount of iron contaminants in alternative fuels.
  • Minimize the risk of damage to the production equipment in the cement plant.
  • Increase operational efficiency through automatic cleaning without the interruption of the material flow.



Benefits of the magnetic drum MBZ 506 F 1000 ATEX

  • 5-year warranty on the magnetic core → Long-term reliability and quality assurance.
  • Automatic cleaning without the interruption of the material flow → Continuous operation and higher efficiency.
  • Adjustable deflector to regulate volume of material flow → Separation process optimization according to specific needs.
  • Adjustable divider of the cleaned non-magnetic material and separated contaminants → Flexible adjustment according to TAP composition.
  • Wiper blades prevent fine or sticky material from adhering to the drum surface → Reduced maintenance costs.
  • Sophisticated design with various access and inspection openings → Easy maintenance and inspection access.
  • ATEX certified → Safe operation in explosive atmospheres.

The cement plant thanks to the installation of the MBZ 506 F 1000 ATEX could effectively eliminate tramp iron, ensure safe and smooth operation, and optimally integrate the separator into the existing technology as well.
